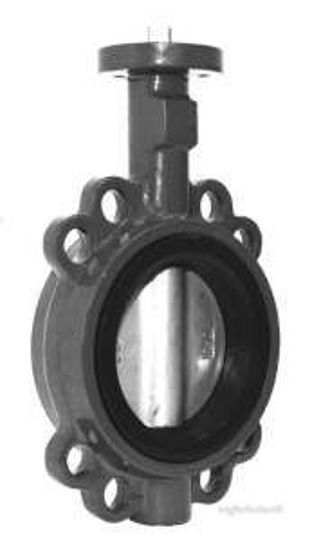

125mm Butterfly Valve Wafer Type PN16 (F07)

125mm Butterfly Valve Wafer Type PN16 (F07)

The Belimo Wafer type Butterfly Valve for shut-off functions in open and closed cold and hot water systems.

The Butterfly valve is opened or closed completely by an open-close rotary actuator.

Continuous rotary actuators can move the valves discs into any position desired. The disc made of stainless steel is pressed into the soft-sealing EDPM seat.

Specification

Media: Cold and warm water with Max 50% volume of glycol.

Media Temperature: -20c...+120c

Rated Pressure: PS1600 kPa

Leakage Rate: A, tight (EN 12266-1)

Angle Of Rotation: 90

Installation Position: Vertical to Horizontal (in relation to the stem)

Maintenance: Maintenance-free

Fitting: EN-JS1030 (GG40)

Disc: DIN/EN 1.4301 / AISI SS 304 (Stainless Steel)

Stem: DIN/EN 1.4005 / AISI SS 416 (Stainless Steel)

Seat: EDPM

Stem Seal: EPDM O-ring

Stem Bearing: RPTFE
