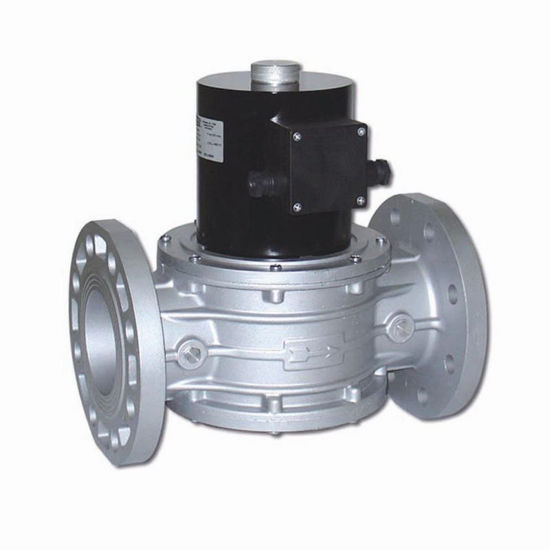

2 1/2" Gas Valve Auto Reset Flanged

2 1/2" Gas Valve Auto Reset Flanged

Gas interception automatic normally closed solenoid valves that open when the coil is powered and close when there is no tension.

These soleniod valves can be controlled by pressure swicth, thermosta etc. They can be equipped with a flow regulator and adjustable slow opening kit.

Specification

Flanged Connections

Power Supply Voltage Tolerance -15%..+10%

Max Working Pressure 200 or 360 mbar.

Environment Temperature -15° +60°

Max Superficial Temperature 85°C

Protection Degree IP65

Closing Time <1s  Opening Time <1s

   Datasheet
